Modify Avatar HandPose

Note: The prefixes used in the tutorial are "WMD_", which can be replaced with your own prefix, and you will need to change the prefix in the AddressableConfig(Assets/Resources/AddressableConfig) file. Once you have changed the prefix, you will need to fill in your new prefix instead of "WMD_" in the tutorial.

1.Generate Avatar Handposes Automatically​

Use CharacterBuilderTools to generate the default hand poses from the avatar's hand rotation offset before making manual adjustments in the game.

  1. In the Unity Project window, expand the target avatar FBX and select its Avatar asset.

  2. Click ConfigureAvatar in the Inspector and configure the avatar in T-Pose.

    configureAvatar

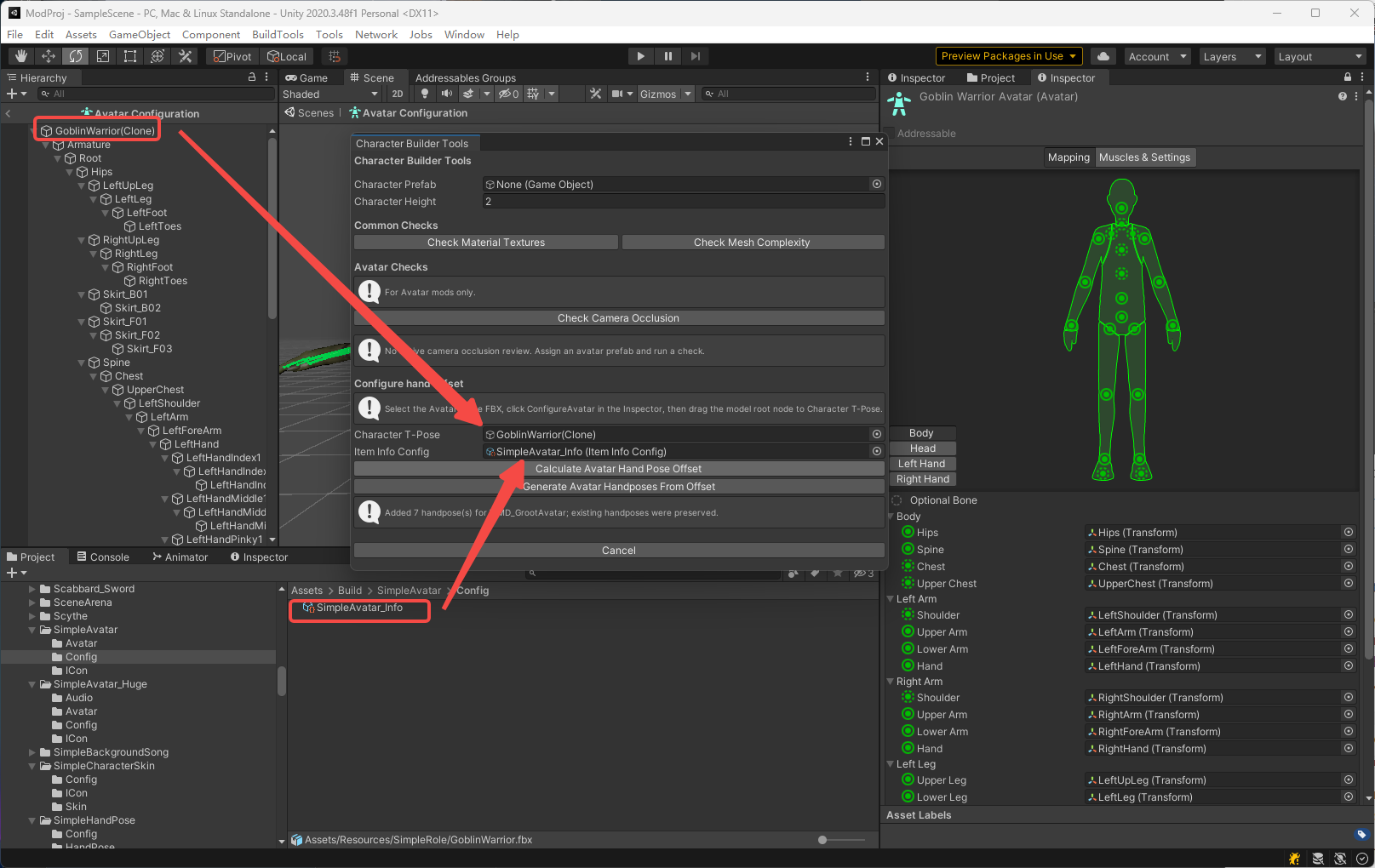

  3. Open Tools > Character Builder Tools.

  4. Drag the model root GameObject into the Character T-Pose field.

  5. Drag the target ItemInfoConfig.asset into the Item Info Config field.

    Config

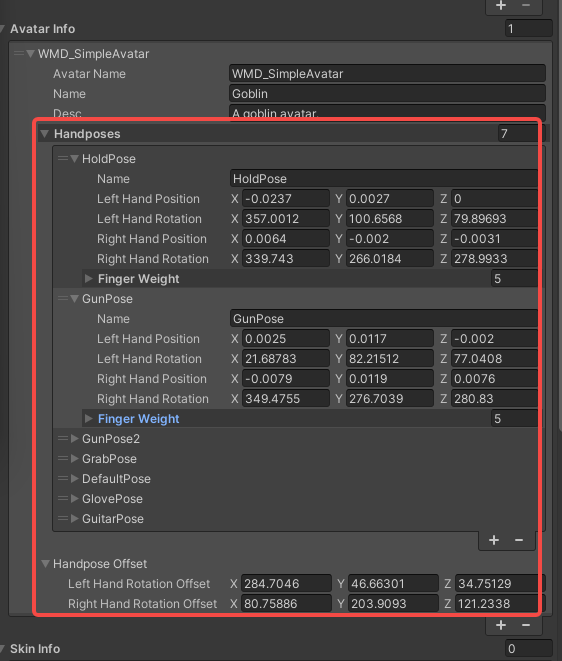

  6. Click Calculate Avatar Hand Pose Offset.

  7. After the calculation succeeds, click Generate Avatar Handposes From Offset.

    AutoSetHandPose

The tool uses the default character's humanoid hand bones and the target avatar's HumanBodyBones.LeftHand and HumanBodyBones.RightHand bones to calculate the rotation offset. It then adds the missing default hand poses to the matching AvatarInfo. Existing hand poses with the same name are preserved.

If one ItemInfoConfig contains multiple AvatarInfo entries, make sure each avatarName matches the name of the corresponding Character T-Pose root GameObject. The tool uses this name to select which AvatarInfo to update.

The target avatar must have a valid Humanoid Animator and both left and right hand bones. If the tool reports an error, fix the avatar setup and run the calculation again.

2.Install the HandPoseTool Mod​

HandPoseTool Mod path:Asset/Toolkit/HandPoseHelper. It has been built so just copy the mod files to the corresponding path on Windows or Quest.

  • To run on Windows: C:\Users[username]\AppData\LocalLow\CyDream\BattleTalent\Mods
  • To run on Quest: /sdcard/Android/data/com.CyDream.BattleTalent/files/Mods/

More details about how to install Mod please check Quick Start.

CreateFolder

3.Switch Avatar in the Game​

Switch to the Avatar you need to modify in the game.

CreateFolder

4.Use HandPoseTool​

Spawn the HandPoseTool and place it in the hand slot.

CreateFolder

Spawn weapons that use the HandPose you need to modify. Hold it with the other hand. In this case the panel of the handPoseTool shows the HandPose information of the gripping hand.

CreateFolder

Using the hand with the HandPoseTool placed:

  1. You can press Trigger to select the parameter to be modified.
  2. Use the joystick to adjust the values.
  3. For ease of operation, you can disable character movement by pressing and holding the trigger, and release it by pressing and holding it again.

5.Fine-tune and use the adjusted values​

After the automatic generation, use HandPoseTool only when you need to fine-tune an individual hand pose.

Back to Create a avatar mod step 6. Use the adjusted values on your AvatarInfo, taking care to distinguish between left and right handedness.

CreateFolder

Done！
